Do programming exercise 10, except that if the user fails to enter a hex-digit character In three tries, display a message and terminate the program

#. Do programming exercise 10, except that if the user fails to enter a hex-digit character In three tries, display a message and terminate the program

Solution:

.model small
.stack 100h
.data
msg1 db 10,13,'ENTER A HEX DIGIT:$'
msg2 db 10,13,'IN DECIMAL IS IT:$'
msg3 db 10,13,'DO YOU WANT TO DO IT AGAIN? y/n$'
msg4 db 10,13,'ILLEGAL CHARACTER- ENTER 0-9 OR A-F:$'
msg5 db 10,13,'Try Some time later...!$'

.code



   again:

    mov cx,0
    mov ax,@data
    mov ds,ax
    lea dx,msg1
    mov ah,9


    int 21h
    mov ah,1
    int 21h
    mov bl,al
    jmp go


    go:

    cmp bl,'9'
    ja hex
    jb num
    je num


    hex:

    cmp bl,'F'
    ja illegal


   lea dx,msg2
   mov ah,9
   int 21h


   mov dl,49d
   mov ah,2
   int 21h


  sub bl,17d
  mov dl,bl
  mov ah,2
  int 21h
  jmp inp


   inp:

   lea dx,msg3
   mov ah,9
   int 21h
   mov ah,1
   int 21h
   mov cl,al
   cmp cl,'y'
   je again
   cmp cl,'Y'
   je again
   jmp exit


  num:
  cmp bl,'0'
  jb illegal
  lea dx,msg2
  mov ah,9
  int 21h
  mov dl,bl
  mov ah,2
  int 21h
  jmp inp


  illegal:

  inc cx
  cmp cx,3
  je i2
  lea dx,msg4
  mov ah,9
  int 21h
  mov ah,1

  int 21h
  mov bl,al
  jmp go


  i2:
  lea dx,msg5
  mov ah,9
  int 21h
  jmp exit

  exit:

  mov ah,4ch
  int 21h

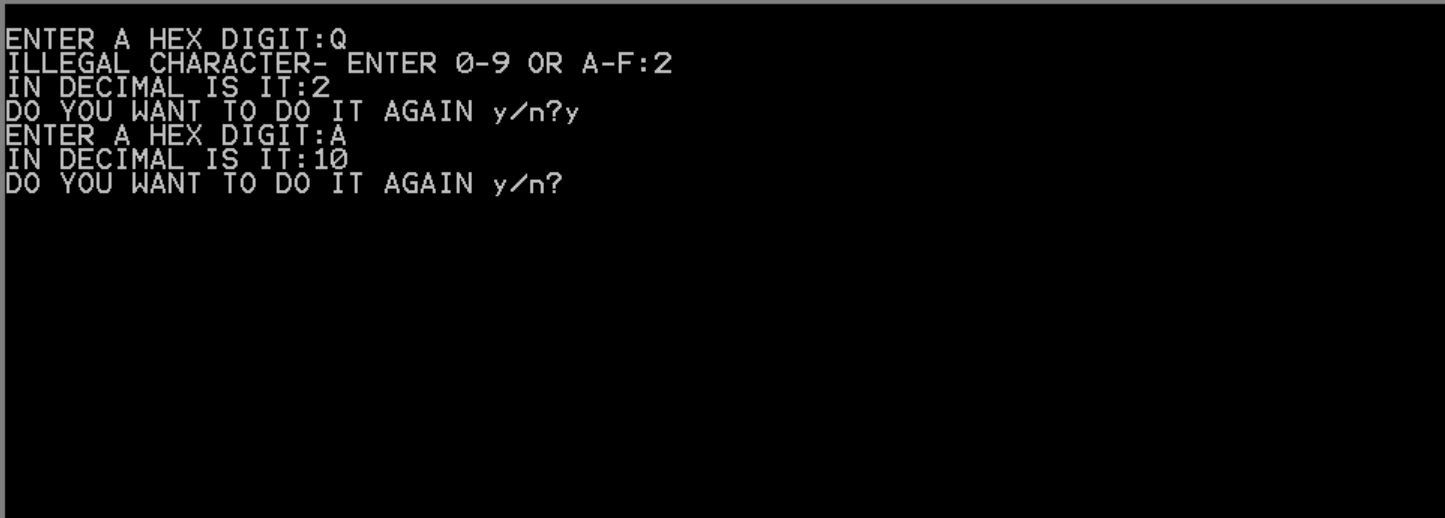

Output:
